Product Description

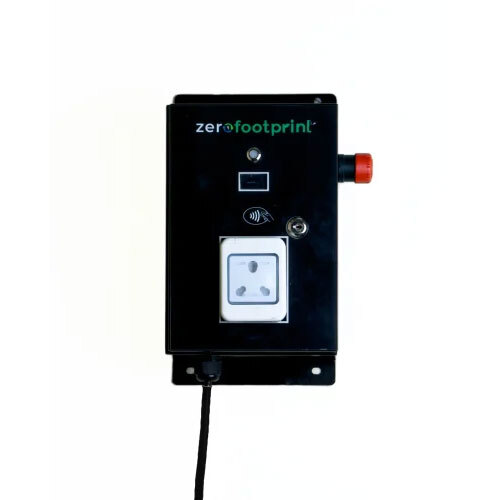

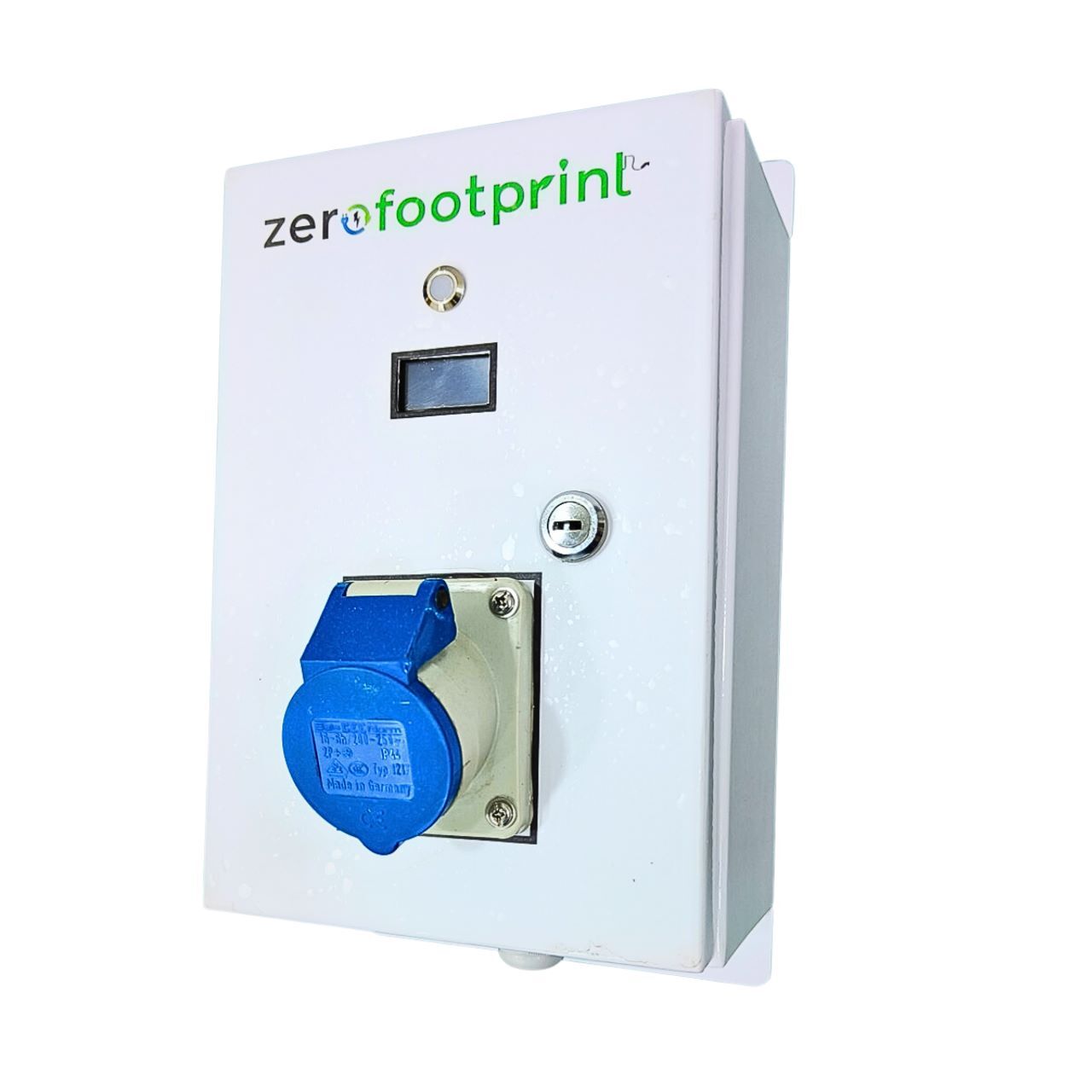

The ZeroFootprint 3.3 kW AC Smart Socket is the ideal charging solution for all 2/3/4 wheel electric vehicles including electric scooters, bikes, auto, small delivery vehicles as well as cars.
This charger/industrial socket is compatible with all EV brands available in the market including Tata, Ola, Revolt, Ather etc. With a compact and sleek design it is very easy to install, allowing device owners to monitor their power usage and consumption through the ZeroFootprint app. It is a waterproof, anti-theft smart charging station that allows EV owners to charge their vehicles while also earning extra money.Power Output
-
| Output Voltage Rating |
230 VAC |
| Max. Output Current |
16A |
| Max. Output Power |
3.3 kW |
| Output Plug |
3 PIN Domestic / Industrial Socket |
| No of Sockets |
1 |
| Power Input |
|
| Input Voltage |
230 VAC, 1-phase / L1, N, PE |
| No of I/P Phase |
1 |
| Input Frequency |
50Hz |
|
| Protection and Safety |
|
| Safety Parameters |
Over Current, Over Voltage, Under Voltage, Ground Fault, Surge Protection, TypeA RCD Protection |
| IP Rating |
IP54 Rated |
|
| Other Specifications |
| Display |
OLED 1.3 Inch |
| LED Indication |
Yes |
| Network Connection |
RFID, Wifi / GSM (Optional) |
| Metering |
In-built Metering |
| Communication Protocol |
OCPP 1.6J |
| Usage |
Indoor / Outdoor |
| Operating Altitude |
2000 mtr |
| User Authentication |
QR Code, Plug & Charge, Mobile App |
| Enclosure Type |
Metal |
| Mounting Arrangement |
Wall Mountable / Pedestal (Optional) |
