Product Description

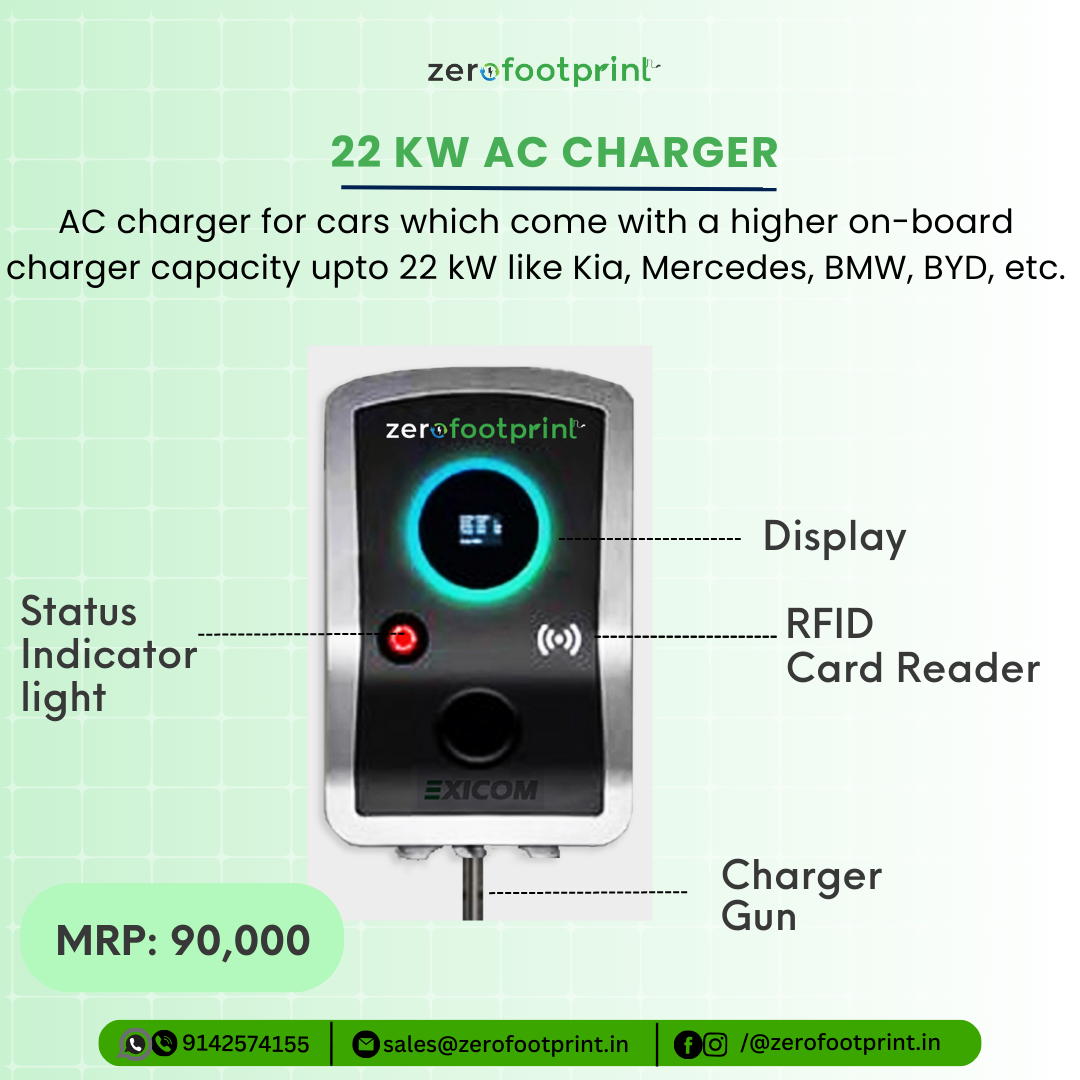

Distributed and Sold by ZeroFootprint this AC 22 kW Charger is manufactured by the leading EV charger manufacturer in India, EXICOM Power Systems. This charger is best suited for 4 Wheeler EVs with a bigger onboard charger above 20 kW. EXICOM is also the leading OEM for some of the largest multinationals in the country including TATA, Kia, Mercedes, Audi, MG, etc.
-
| Power Output |
|
| Output Voltage Rating |
415 VAC |
| Max. Output Current |
40 A |
| Max. Output Power |
22 kW |
| Output Plug |
IEC 62196-2 Type 2 |
| Number of Plug |
1 |
| Power Input |
|
| Input Voltage |
415 VAC, 3-Phase / L1, L2, L3, N, PE |
| No of I/P Phase |
3 |
| Input Voltage Range |
340 VAC - 460 VAC |
| Input Frequency |
50/60 Hz |
| Power Factor |
> 0.98 |
| Protection and Safety |
|
| Safety Parameters |
Short Circuit Protection, Over & Under Voltage Safeguard, Over Load Protection, Earth Leakage Protection, Grounding Detection, Surge Protection, Overheating, Internal Residual Current Detection, Indicator Light, Electricity Measurement |
| Water Resistance |
IP56 Rated |
| Emergency Swtich |
Available (Mushroom Red Switch) |
|
| Other Specifications |
|
| Connectivity |
Bluetooth / WiFi / GSM |
| Communication |
OCPP v1.6J |
| Display |
2.3 Inches |
| Support Language |
English |
| Dimensions |
546 x 319 x 230 mm |
| Weight |
10 - 12 kg |
| Charging Operation |
Standalone |
| Visual Indication |
Presence of Supply, State of Charging, Error |
| User Authentication |
RFID, QR Code, Plug & Charge, Mobile App |
| Multi-Colour LED |
Yes |
