Product Description

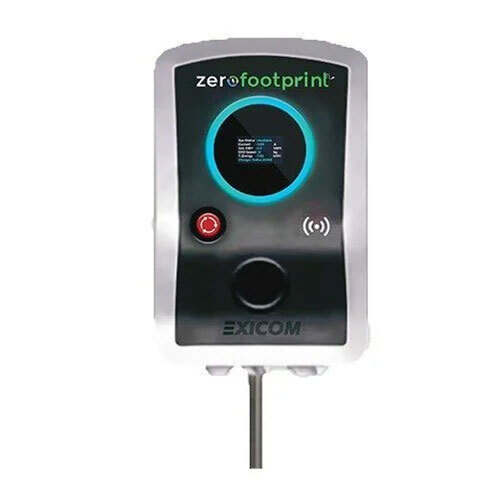

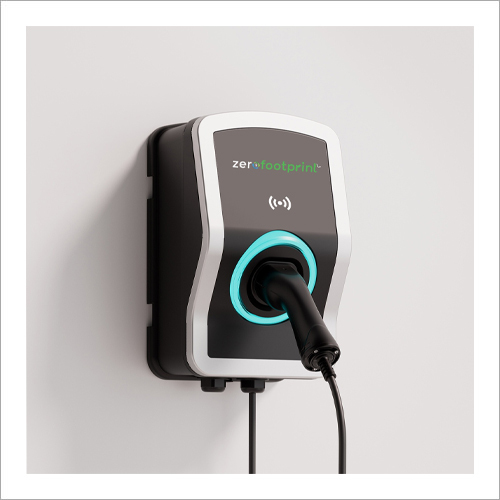

Distributed and Sold by ZeroFootprint this AC 7.5 kW Charger is manufactured by the leading EV charger manufacturer in the country, EXICOM Power Systems. This charger is incredibly robust and cost-effective, providing a simple, reliable charging experience for all 4 Wheeler EVs. EXICOM is also the leading OEM for some of the largest multinationals in the country including TATA, Kia, Mercedes, Audi, MG, etc.
|
|
| Power Output |
|
| Output Voltage Rating |
230 VAC |
| Max. Output Current |
32 A |
| Max. Output Power |
7.5 kW |
| Output Plug |
IEC 62196-2 Type 2 |
| Number of Plug |
1 |
|
| Power Input |
|
| Input Voltage |
230 VAC, 1-Phase / L1, N, PE |
| No of I/P Phase |
1 |
| Input Voltage Range |
150 VAC - 270 VAC |
| Input Frequency |
50/60 Hz |
| Power Factor |
> 0.98 |
|
| Protection and Safety |
|
| Safety Parameters |
Short Circuit Protection, Over & Under Voltage Safeguard, Over Load Protection, Earth Leakage Protection, Grounding Detection, Surge Protection, Overheating, Internal Residual Current Detection, Indicator Light, Electricity Measurement |
| Water Resistance |
IP56 Rated |
| Emergency Swtich |
Available (Mushroom Red Switch) |
| Other Specifications |
|
| Connectivity |
Bluetooth / WiFi / GSM |
| Communication |
OCPP v1.6J |
| Support Language |
English |
| Dimensions |
546 x 319 x 230 mm |
| Weight |
7 kg |
| Charging Operation |
Standalone |
| Visual Indication |
Presence of Supply, State of Charging, Error |
| User Authentication |
RFID, QR Code, Plug & Charge, Mobile App |
| Multi colour LED |
Yes |
